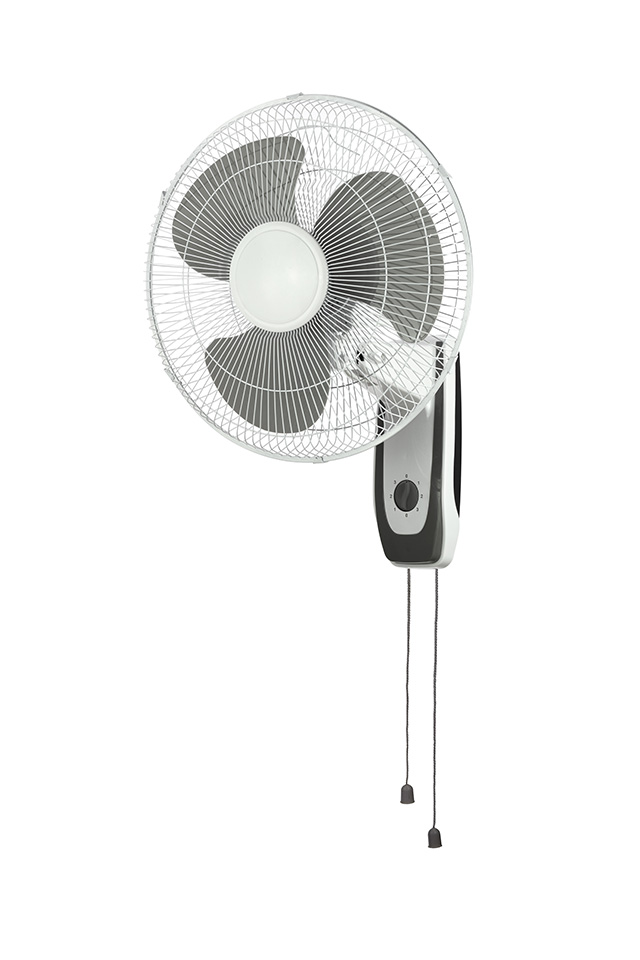

Maintenance and Troubleshooting Guide for Oscillating Wall Fans

Oscillating wall fans are essential for maintaining comfort in various settings, from homes to offices and industrial spaces. However, like any electrical appliance, they require regular maintenance and can encounter issues over time. This guide aims to provide a comprehensive overview of the maintenance and troubleshooting of oscillating wall fans, ensuring they operate efficiently and have a prolonged lifespan.

Understanding the components of an oscillating wall fan

Oscillating wall fans are designed to provide a wide range of airflow, making them ideal for various settings where space is limited. Understanding the components of these fans is crucial for effective maintenance and troubleshooting.

Fan blades: The fan blades are responsible for moving air. They are usually made of plastic or metal and can vary in size and shape. The design of the blades affects the airflow and the fan’s efficiency. Regular inspection of the blades for dust accumulation or damage is essential, as this can impact the fan’s performance and efficiency.

Motor: The motor is the heart of the fan, powering the oscillation and rotation of the blades. It typically consists of a stator and a rotor. The stator is the stationary part of the motor, while the rotor is the rotating component that drives the fan blades. Motors can be AC or DC, with AC motors being more common in wall fans due to their efficiency and ability to run continuously.

Oscillation mechanism: This mechanism allows the fan to move from side to side, distributing air over a larger area. It typically includes a motor and a gear system that drives the oscillation. Some fans have a manual adjustment for the oscillation angle, while others offer automatic oscillation.

Mounting bracket: The mounting bracket secures the fan to the wall. It is usually adjustable, allowing the fan’s angle to be changed for optimal airflow. The bracket is made of durable materials like metal or high-strength plastic to support the fan’s weight and withstand the forces of oscillation.

Power supply: The power supply provides the necessary electrical energy to the fan. It can be a direct connection to a power outlet or a battery in the case of cordless models. The power supply should match the fan’s voltage and current requirements to ensure safe and efficient operation.

Controls: The controls allow the user to operate the fan, adjusting settings like speed, oscillation, and timer. They can be manual, with knobs or switches, or electronic, with remote control or touch panels. Some modern fans also offer smart controls, allowing operation via smartphone apps or voice commands.

Safety features: Safety features like thermal cut-off, fuse protection, and sturdy construction are crucial for preventing electrical hazards and ensuring safe operation. These features protect the motor and electrical components from overheating and damage, extending the fan’s lifespan and preventing accidents.

Routine maintenance for optimal performance

Regular maintenance is key to keeping your oscillating wall fan in optimal working condition. It not only ensures efficient operation but also extends the lifespan of the fan. Here are the essential maintenance steps:

Cleaning the fan: Dust and debris can accumulate on the fan blades and motor over time, affecting the fan’s efficiency and performance. It’s advisable to clean the fan at least once a month. Unplug the fan and use a damp cloth or a soft brush to wipe the blades, motor, and other accessible parts. For hard-to-reach areas, a vacuum cleaner with a brush attachment can be useful. Avoid using abrasive cleaners that could damage the fan.

Tightening loose screws and bolts: Over time, screws and bolts can become loose due to the fan’s vibrations during operation. This can lead to noise and instability. Regularly check and tighten all screws and bolts to ensure the fan is securely mounted and all components are firmly attached.

Lubricating moving parts: Lubrication is essential for reducing friction and wear in the fan’s moving parts. Use a few drops of lightweight machine oil on the motor shaft and other moving parts as recommended by the manufacturer. Avoid over-lubricating, as excess oil can attract dust and debris.

Checking and replacing worn-out parts: Regularly inspect the fan for any signs of wear and tear, such as frayed wires, damaged blades, or a malfunctioning motor. Replace any worn-out parts promptly to avoid further damage and ensure safe operation. It’s advisable to use genuine replacement parts recommended by the manufacturer.

Inspecting the power cord and plug: The power cord and plug are crucial for the fan’s operation. Regularly check the cord for any signs of damage, such as cuts, frays, or exposed wires. If you notice any damage, unplug the fan immediately and replace the cord with a new one. Also, check the plug for any signs of wear or damage.

Ensuring proper alignment and mounting: Proper alignment and mounting are essential for the fan’s efficient operation. Ensure that the fan is securely mounted and aligned properly to avoid unnecessary strain on the motor and other components. Check the mounting bracket and tighten any loose screws or bolts.

Troubleshooting common issues

Troubleshooting common issues with oscillating wall fans can often resolve problems without the need for professional repair. Here are some common issues and their solutions:

Fan not starting: If the fan does not start when plugged in, check the power supply. Ensure that the fan is properly plugged into a functioning power outlet. Check if the power cord is damaged or frayed. If the cord is damaged, replace it with a new one. Also, check the fuse or circuit breaker to ensure that the circuit is intact. If the fan still does not start, the motor may be faulty and require professional repair or replacement.

Unusual noise during operation: If the fan makes a rattling, grinding, or clicking noise during operation, it could be due to loose screws or bolts. Tighten all screws and bolts to eliminate the noise. If the noise persists, it may be due to a damaged motor or worn-out bearings. Lubricate the moving parts as mentioned earlier. If the noise continues, consult the user manual for further troubleshooting or seek professional help.

Fan not oscillating: If the fan does not oscillate, it could be due to a malfunctioning oscillation mechanism. Check if the oscillation switch is turned on. If the switch is on and the fan still does not oscillate, the gear system may be damaged and require replacement. Consult the user manual for specific instructions on replacing the oscillation mechanism.

Fan wobbling or shaking: If the fan wobbles or shakes during operation, it could be due to improper mounting or misalignment. Ensure that the fan is securely mounted and aligned properly. Check if the mounting bracket is tightened and the fan is level. If the fan still wobbles, the blades may be bent or damaged. Replace the blades if necessary, following the manufacturer’s instructions.

Remote control issues: If the fan’s remote control is not functioning, check the batteries and replace them if necessary. Ensure that the remote control is within the range of the fan’s receiver. If the remote control is still not working, consult the user manual for troubleshooting tips or seek professional help.

Conclusion

In conclusion, regular maintenance and timely troubleshooting are essential for the efficient and safe operation of oscillating wall fans. By following the maintenance tips and troubleshooting steps outlined in this guide, you can ensure your fan operates optimally and has a long lifespan. Regular cleaning, lubrication, and inspection of the fan’s components can prevent common issues and enhance the fan’s performance. If you encounter any issues beyond basic maintenance, it’s advisable to consult the user manual or seek professional assistance. Proper maintenance not only ensures the efficient operation of your oscillating wall fan but also contributes to a comfortable and healthy indoor environment.
